The CCM-1 was the largest IntelliCam project to date. No system before it had the ability to upload video clips. This required a second microcontroller, full speed USB transfer, and a website for users to view video. The second microcontroller was a FTDI chip that at the time, was the only full speed USB 2.0 dual-host chip. I wrote thousands of lines of code (and USB protocol) to enumerate the camera as well as the 4G modem, and transfer the video file at full USB speed. I then wrote a new SMS "command set" to control the system. Lastly, an entire web frontend and backend was design for the User Interface. The end result was a one-of-a-kind product that offered brand new features and technology.

The CCM-1 is a 4G "video backhaul" system that will send SMS alarm notifications and allow the user to upload videos. It has an integrated C battery pack, integrated wireless RF receiver, and is in a ruggedized weatherproof enclosure. The system can be fully controlled via SMS. It can be triggered by any of our sensors, and also has a built in tamper detect motion switch. Videos can be viewed online on a secure site with full a user interface.

Major Projects

• Initial Product Design
• Electrical Engineering
• Mechanical Engineering
• Firmware/Software Engineering
• 4G Modem Integration
• Full Speed USB 2.0 Integration
• SMS Control
• RF Modem and Sensor Integration
• Internal Battery Integration
• Full User Interface Website
• User Guide

Electrical

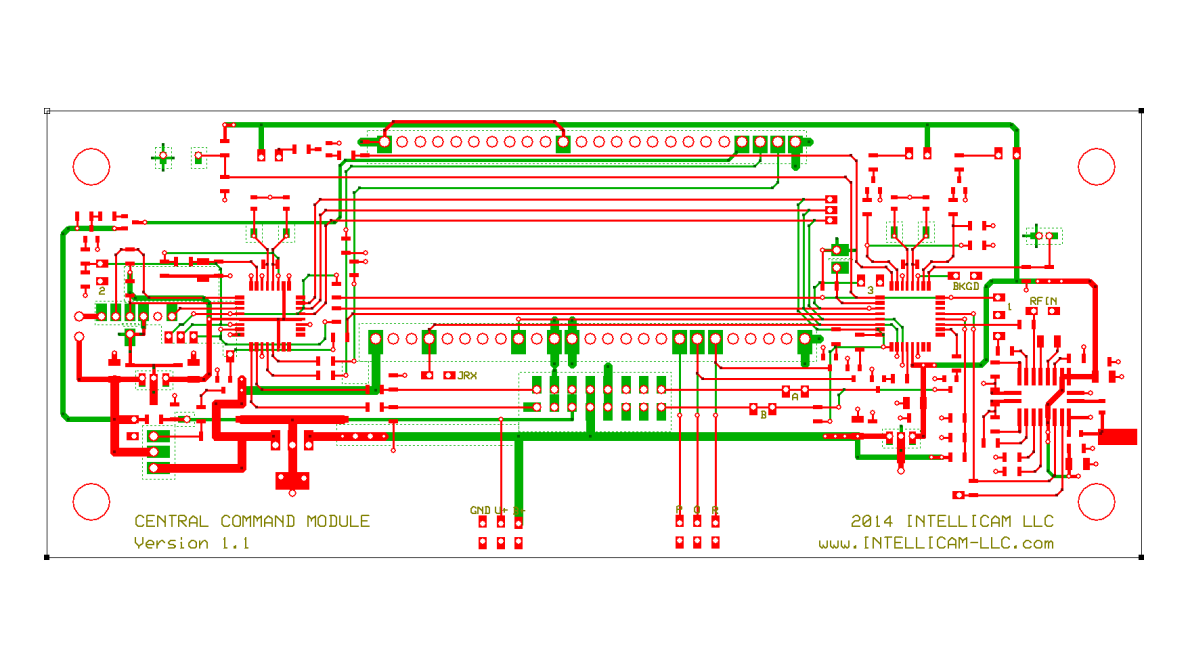

• Full Electrical Design
• Internal Power Management System
• USB Interface Design

Mechanical

• Compact Weatherproof Enclosure
• Easy SIM Card Access
• Quick Deploy Micro-USB Camera Interface
• Simple User Interface

Project List

Firmware
Software

• Ultra Low Power 8-bit Microcontroller
• FTDI USB Dual-Host Microcontroller
• SMS Alarms
• Control Modem with SMS Commands
• Tamper Detect Notification
• Full User Interface Website

RF/Sensor Integration

• RF Modem Control
• RF Power Management
• Sensor Activation Control
